Programming tests and monitoring results can be controlled through our powerful and Intelligent Labtest test software, which allows complete and accurate data management in accordance with European, North American and International Standards.
This instrument is suitable for use both in production lines where the operator has to be fast and efficient and can accurately control the test with the optional remote control unit and also laboratory environments where the advanced software lets users analyse the test data. Labtest allows full control of processing, filing, managing, and transmitting data to the company network, database, and performs many other functions.

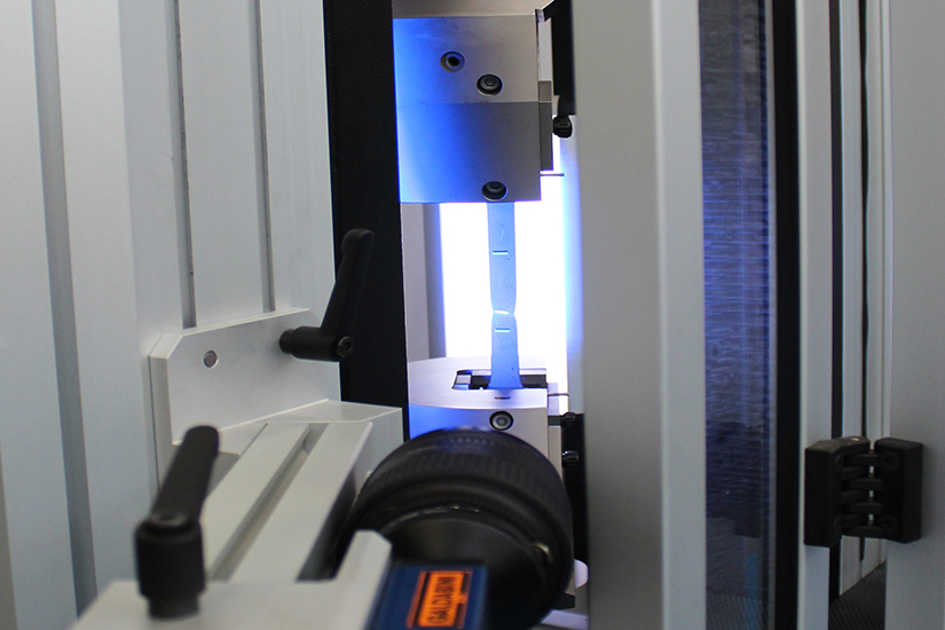

This Quasar frame has a flexible and modular construction. It can be equipped with various grips and fixtures, as well as extensometers, additional load cells, temperature chambers and many more accessories, for a wide range of applications (tensile, compression, flexure, etc.). In addition, this user-friendly instrument can be fitted with additional load cells with lower capacities, providing the highest resolution and accuracy for microloads.
|Capacity of frame and max allowed load||250 kN (56,202 lbf)|
|Load cell nominal size
(tensile & compression)
|Standards met or exceeded||ISO 7500-1, ASTM E4, EN 10002-2, JIS B7721, GB/T 16825.1, DIN 51221, BS 1610 and other equivalent|
|Testing area depth||Unlimited|
|Power Rating||3000 W|
|Machine weight (without accessories)||730 Kg (1,610 lb)
|Finishing||Silver RAL 9006 / Black RAL 9011|
|PC interface||Ethercat (A dedicated Ethernet port on PC is required)|
< 72 db
